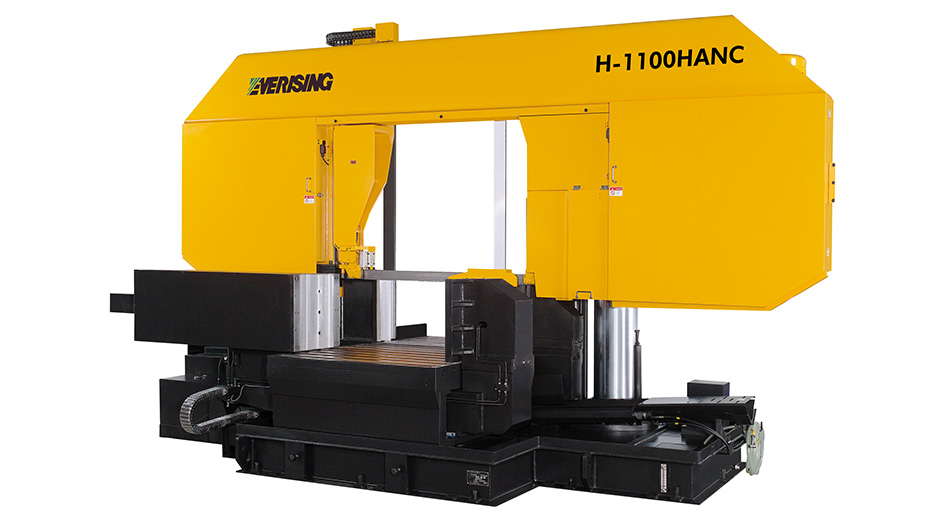

Column Type H-1100HANCFully Automatic Band Saw
| Model | H-1100HANC | |
|---|---|---|
| Capacity | 1000 mm (40") | |
| 1100 x 1000 mm (43.3"W x 40"H) min. clamp width 400 mm (15.7") |
||
| Blade Speed | 15 to 75 m/min (50 to 250 fpm) (INVERTER) | |
| Motor | Blade Drive | 11.2 kW (15HP) |
| Hyd. Pump | 3.7 kW (5HP) | |
| Coolant Pump | 0.4 kW (1/2HP) | |
| Blade Size | 11100 x 80 x 1.6 mm (437" x 3" x 0.063") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") NC comtrol | |
| Machine Weight | 14000 kg (30800 lb) | |
| Floor Space (L x W) | 5150 x 2715 mm (203" x 107") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
- Machine design suitable for using TCT saw blade.
- Extreme Duty transmission.
- Variable blade speed controlled by inverter.
- Guide arm travels on linear guide way and moves in coordination with the movable vise jaw.
- Auto trim cut and initial cut positioning.
- Close approach vise reduces remnants.
- Hydraulic full stroke dual-vise clamping system with floating vises.
- PLC control, for all electric and hydraulic functions.
- HMI/PLC User Friendly Touch Screen with selfdiagnosis system.
- NC control with 9 working jobs.
- Adjustable hydraulic pressure & feed control on control panel.
- Power driven blade cleaning brush.
- Automatic work height control by fast approach bar sensor.
- Out of stock shutoff.
- Blade anti-vibration device.
- Hydraulic blade tensioning.
- Idler wheel motion detector with blade stalling and breakage shutoff.
- Hydraulic actuated carbide blade guides.
- Roller type work table.
- Independent electric cabinet and control panel.
- Additional portable control panel.
- Automatic chip conveyor.
- Flushing hose for machine cleaning.
- Work light.
- One M42 bi-metal saw blade.
- One set of tools and tool box.
- Dead roller conveyor, 3 M long.
- Out of square detector.
