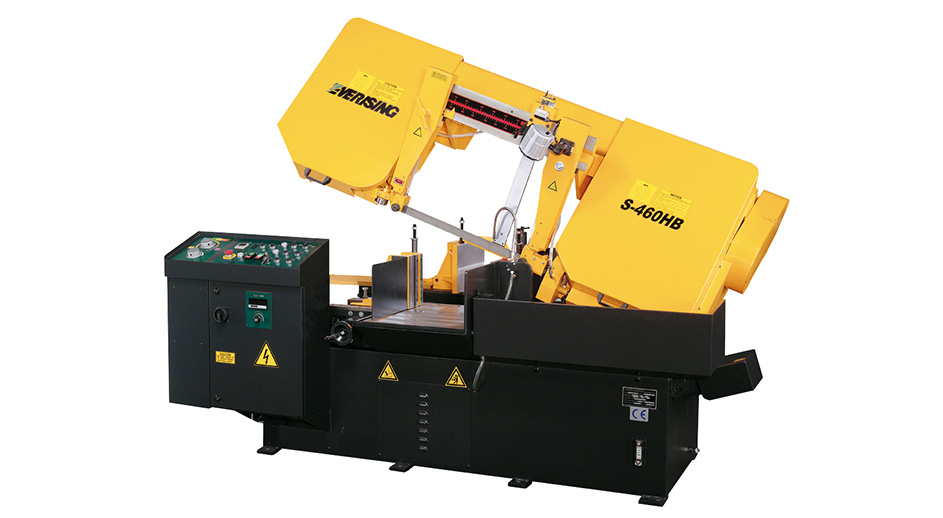

Pivot Type S-460HBFully Automatic Band Saw
| Model | S-460HB | |
|---|---|---|
| Capacity | 460 mm (18") | |
| 460 x 460 mm (18"W x 18"H) | ||
| Bundle Cutting | Width | 195 to 350 mm (8" to 14") |
| Height | 125 to 230 mm (5" to 9") | |
| Blade Speed | 20 to 100 m/min (65 to 330 fpm) (INVERTER) | |
| Motor | Blade Drive | 5.5 kW (7.5HP) |
| Hyd. Pump | 1.5 kW (2HP) | |
| Coolant Pump | 0.2 kW (1/4HP) | |
| Blade Size | 4670 x 41 x 1.3 mm (184" x 1.6" x 0.05") | |
| Blade Tension | Hydraulic | |
| Index Length | 500 mm (20") 500 mm x 9 times (20" x 9) |
|
| Machine Weight | 2400 kg (5260 lb) | |
| Floor Space (L x W) | 2645 x 2180 mm (104.1" x 85.8") | |
* All specifications, dimensions and design characteristics shown in this catalogue are subject to change without prior notice.
- United Contruction-(Bar feed and saw are on one base).
- Shuttle type automatic feed.
- P.L.C. control for all electric and hydraulic function.
- Hydraulically controlled dual vise clamping system.
- Floating shuttle vise system.
- Split front vise.
- Infinitely variable speed control by inverter.
- Blade speed tachometer.
- Hydraulic blade tensioning.
- Roller bearing with carbide blade guide system.
- Automatic work height control by fast approach bar sensor.
- Preset cut counter with shut off.
- Out-of-stock shut off.
- Multiple indexing (9 times).
- Nesting fixture for bundle cutting.
- Power driven blade cleaning brush.
- Idler wheel motion detector with blade stalling and breakage shut off.
- Flushing hose for machine cleaning.
- Work light
- Roller stock table 2M long.
- One M42 bi-metal saw blade.
- One set of tools and tool box.
- Automatic chip conveyor.
- Variable vise pressure.
- User friendly NC touch screen control with selfdiagnostic system.
- Full stroke vise clamping system.
